Commercial grade: BTD-1000 is designated for receiving Bluetooth heart rate value , especially suitable for multi-person occasions such as fitness clubs...,

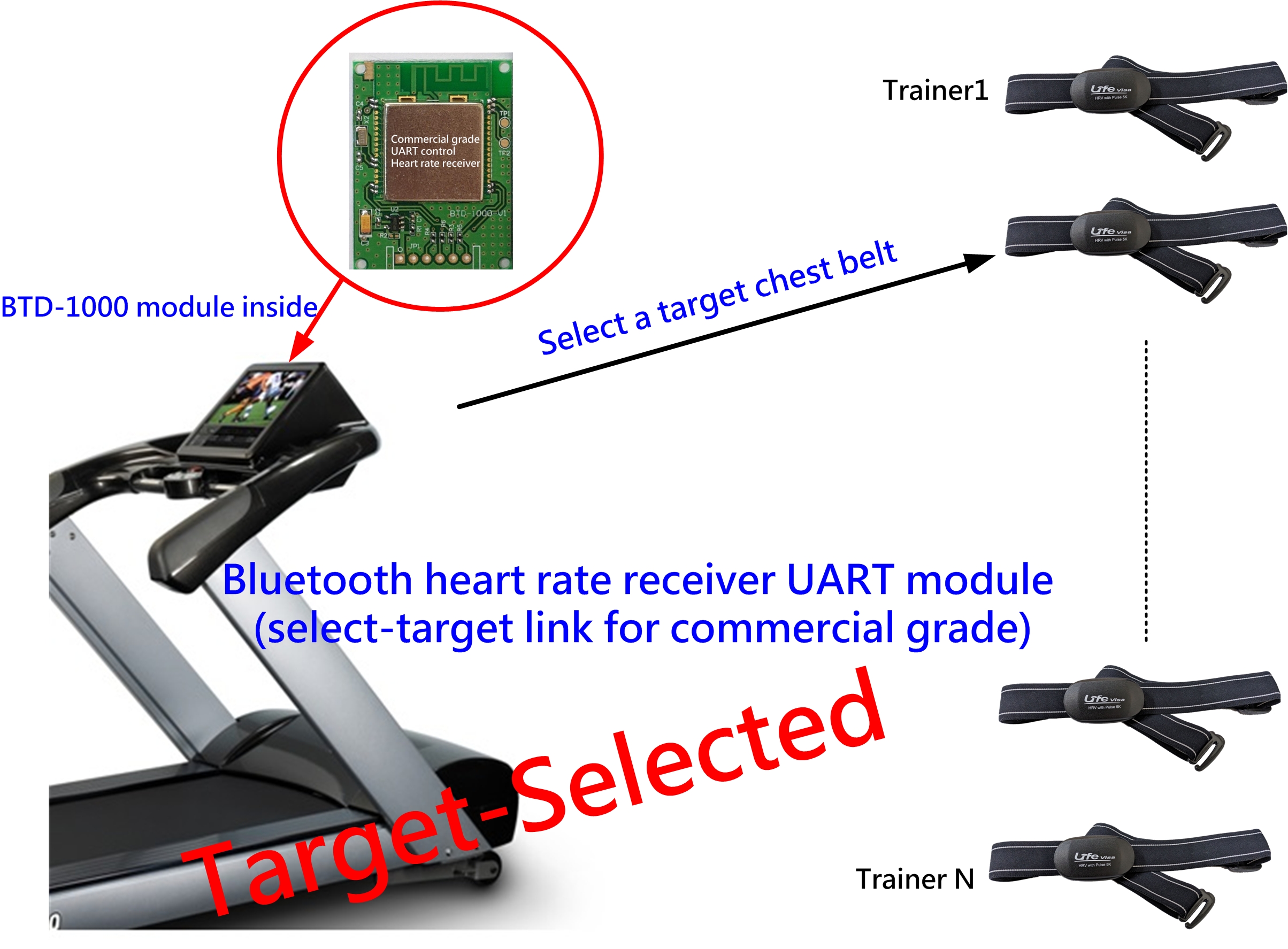

By using UART technical,BTD-1000 can be designated a specific chest strap then receive the value of this specific chest strap heart rate . (This case is suitable for new product OEM cooperation case and group team fitness products development)

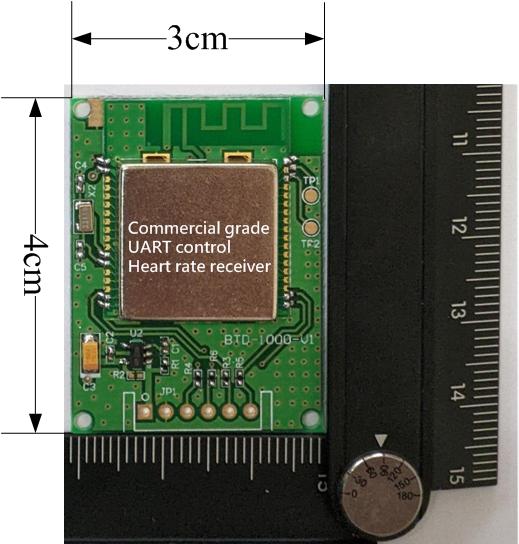

The BTD-1000 heart rate receiving module is used to support receiving the heart rate value from the 2.4GHz digital bluetooth heart rate chest strap.
Through the UART protocol commands,console can control BTD-1000 automatically perform the necessary procedures about scanning, searching, pairing, and heart rate values transmission .
Thus, BTD-1000 connects directly to sports equipment or devices to receive wireless heart rate values from chest straps,
Significantly simplifies the Bluetooth chest strap pairing process for users.
The designated connection to user's bluetooth chest strap capability is suitable for multi-person use occasions and improve the quality and application of heart rate fitness equipment for commercial/health clubs.
A complete technical support manuals and sample programs are prepared will speed up the development of cooperative application products.
FCC, CE complete technical verification provided.
Connector pin description:
1 Vin DC3-5V
2 GND
3 P06 TX
4 P08 RX
5 NC
6 NC
Note: Pin 3 P06 TX must be connected to UART RX
Pin 4 P08 RX must be connected to UART TX
UART baud rate :115200(standard,others by option)
The 5th Generation Bluetooth Strong Advantages You Must Know
Bluetooth 5.0 was released in June 2016. In addition to low power consumption, the effective transmission distance of the fifth-generation Bluetooth will be 4 times that of the 4.2LE version, and the transmission speed will be 2 times that of the 4.2LE version (the speed limit is 24Mbps). Therefore, the transmission speed is faster, the distance is longer, the signal is more stable and the power consumption is more efficient.
